Endpoint data summary

Building a comprehensive content for you: A Work in Progress...

The Endpoint data summary is a view providing the user with an overview of the aggregated data counts for the configured active endpoints.

flowchart TD
  A[<b>Endpoint data summary</b>]:::someclass --> B[Endpoint data viewer]
  B --> C[Task runs]
  B --> D[Data viewer]
  C --> E[Task history view + Log]
  G[Dashboard] --> E
  E --> F[Task step data snapshot]
  H[Task run summary] --> I[Task run viewer]
  I --> E
  J[Task run analysis] -- Filter: Outliners only --> I
  K[Home screen Task run search] --> E
  classDef someclass fill:#ebf5eb

Result view

The result view is structured into a tabular format including columns: Endpoint, Method, Scheduled and the counts of task runs in individual statuses: In progress, Successful, Failed, Parked and Data size.

Help_Home_screen_Endpoint_data_summary_general

  • Endpoint - The column endpoint is organized in a structured way displaying Company -> Endpoint group -> Endpoint.

  • Method - Displays the method configured and used for the respective endpoint: GET, POST, PUT, DELETE, PATCH.

Counts of task runs in individual statuses:

  • Scheduled - Count of the task runs scheduled for future runs.

  • In progress - Count of the task runs currently in progress. All task runs with the execution status 1xx are counted here.

  • Successful - Count of the finished task runs. All task runs with the execution status 2xx are counted here.

  • Failed - Count of the failed task runs. All task runs with the execution status 3xx are counted here.

  • Parked - Count of the parked task runs

  • Data size - If any data is produced, the size of the data is displayed. This feature is by default switched off. Use the built-in filters to show the Data size.

All displayed count results in the summary are active and clickable. Clicking on the numbers navigates you to the Endpoint data viewer with the applied filter on respective company, endpoint, method and date range. Data records in the endpoint data viewer are displayed per task run.

Filters

The endpoint data summary view includes built-in filters to narrow down the result data set. Every filter has a multiple value selection feature available. If more values are selected within one filter, a logical operator OR applies among the selected values. The visibility of the values to select in the filters are driven by the user access rights. The administrators can see any company, enpdoint group, and endpoint in the filters. The standard users can only see the values related to the companies they own or have access to. E.g. the company owner, can filter on the endpoints realted to the owned company.

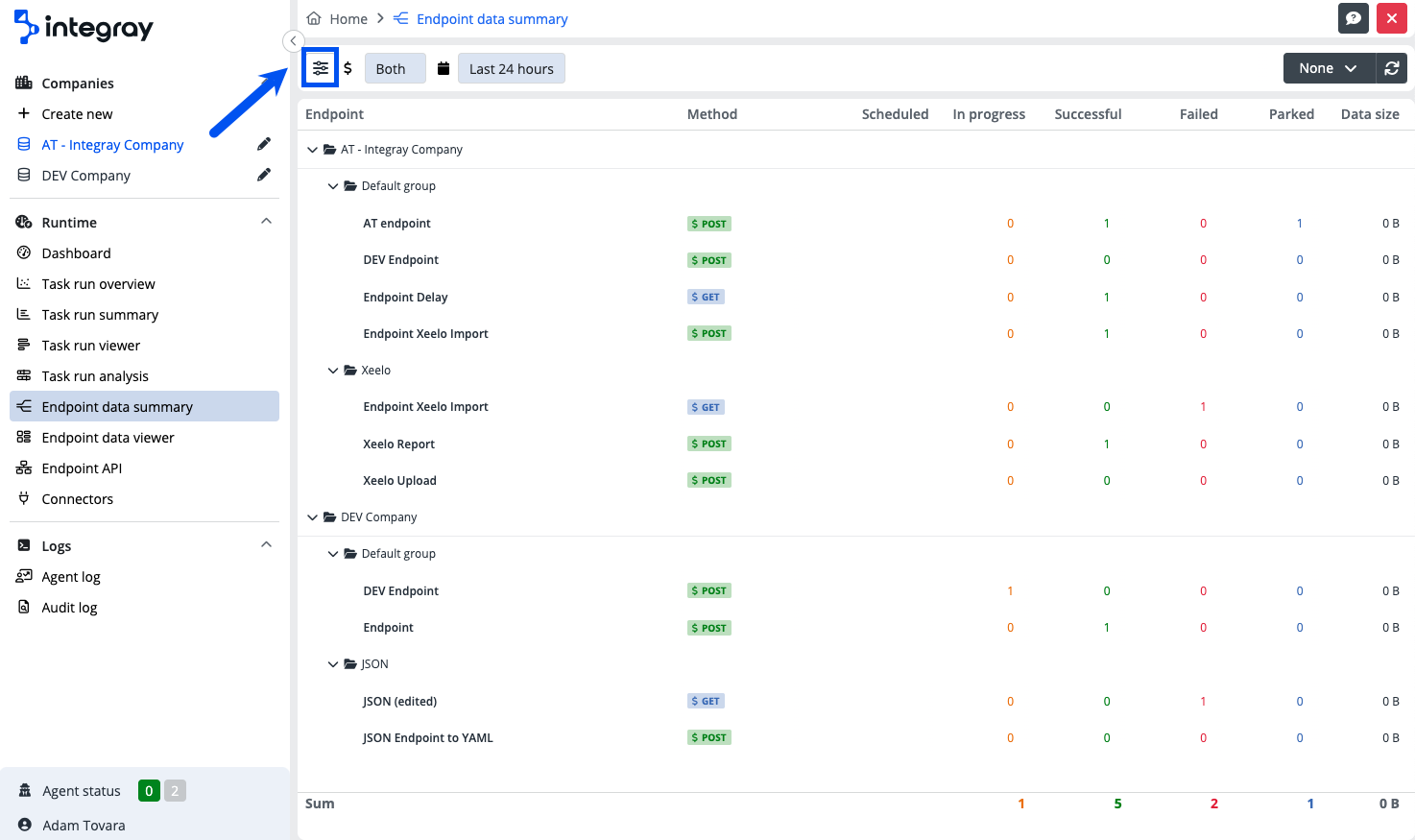

You can enter the built-in filters by clicking the button on the left side and opening the modal dialog window.

Help_Home_screen_Endpoint_data_summary_filter_button

Built-in filters

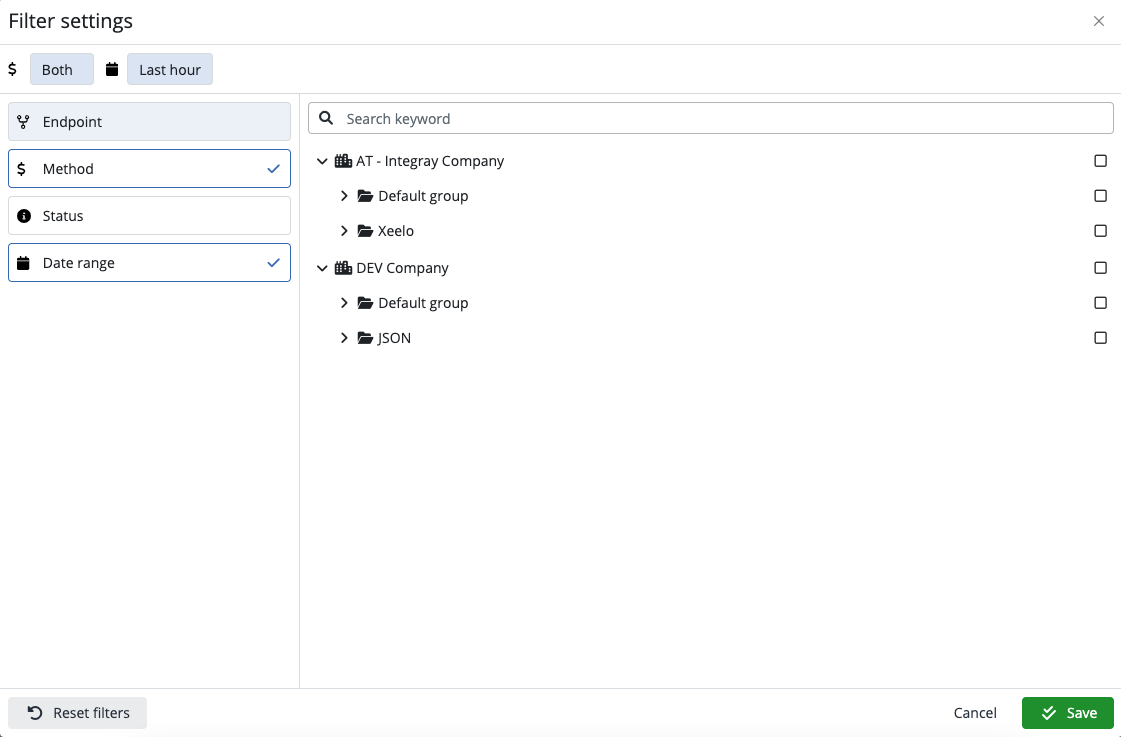

You can narrow down the resulting data set by filtering within the following items: Endpoint, Method, Status, Date range.

Help_Home_screen_Endpoint_data_summary_filter_settings

  • Endpoint - Select the required endpoint.
  • Method - Select the required Method (All or just the GET, POST, PUT, DELETE, PATCH)

  • Status - Select the required status. See below the status table.

    ID Status description ID Status description
    0 Unknown 301 Failed agent killed
    1 Scheduled 302 Failed timeout
    100 In progress 303 Failed cancelled by user
    101 Waiting for agent 304 Failed run time
    200 Finished success 305 Failed agent
    201 Finished no data 306 Failed output
    202 Finished with errors 307 Failed input
    203 Nothing to process 999 Parked
    300 Failed connector

    Generally, statuses 1xx - represent "in progress", 2xx - represent "finished", 3xx - represent "failed".

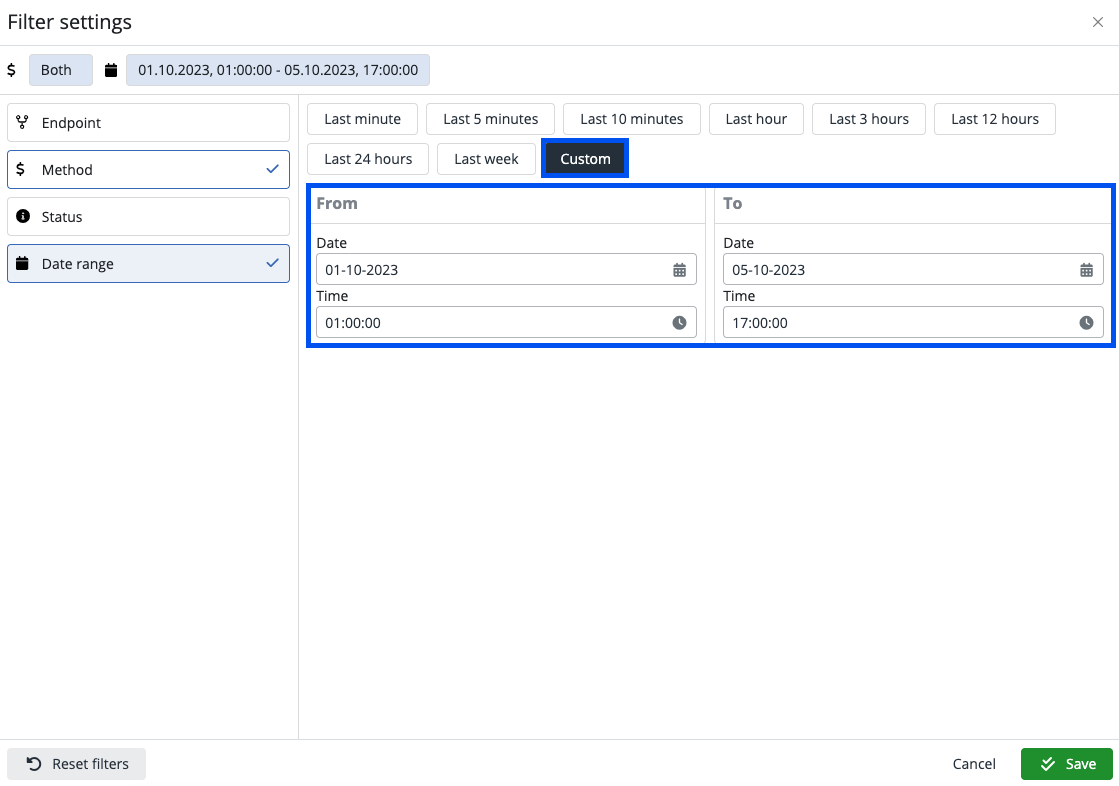

  • Date range - Select the required date range from the Predefined ranges Last minute, Last 5 minutes, Last 10 minutes, Last hour, Last 3 hours, Last 12 hours, Last 24 hours, Last week. Additionally, a custom date range can be set - From: Date & Time, To: Date & Time.

Help_Home_screen_Endpoint_data_summary_Filter_Custom_range

Usage of the filters:

Choose the required type of filter on the left side and configure it on the right side. Used filters are marked with an active marker icon on the left side, as well as those are visible as buttons on the filter menu and preview. To cancel the active filter, click the cross icon on the right side of the button. If the button does not contain a cross to remove the filter, it means the filter is default and can't be removed.

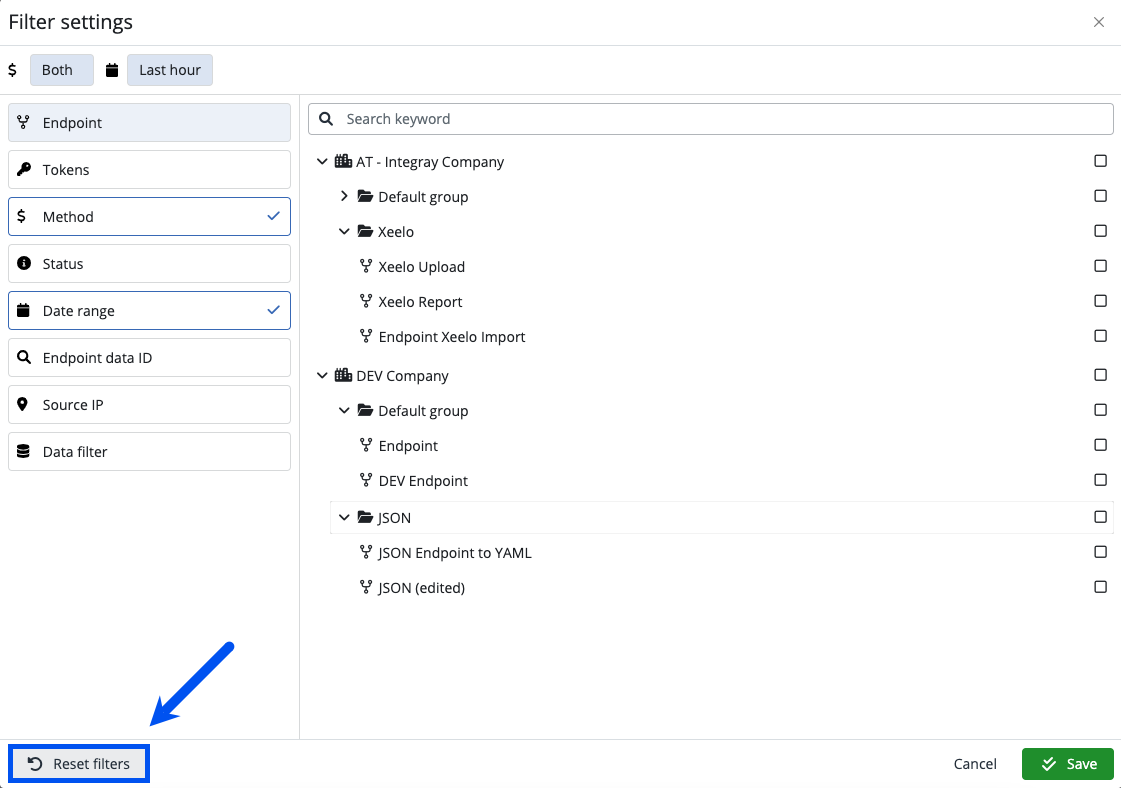

You can reset all the filters by clicking the Reset filters button in the left bottom corner of the Filter settings. The filter will be set to the default values.

Help_Home_screen_Endpoint_data_summary_Reset_filters

Number of displayed endpoints

The endpoint data summary can display up to 100 endpoints. If the number of endpoints to be displayed is greater than 100, you will be prompted by the system and asked to use the built-in filters to limit the set of displayed endpoints.
